基本資料

型號編碼

0119300731

型號全稱

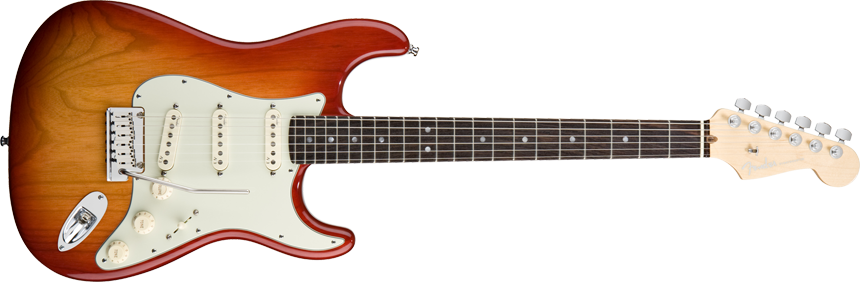

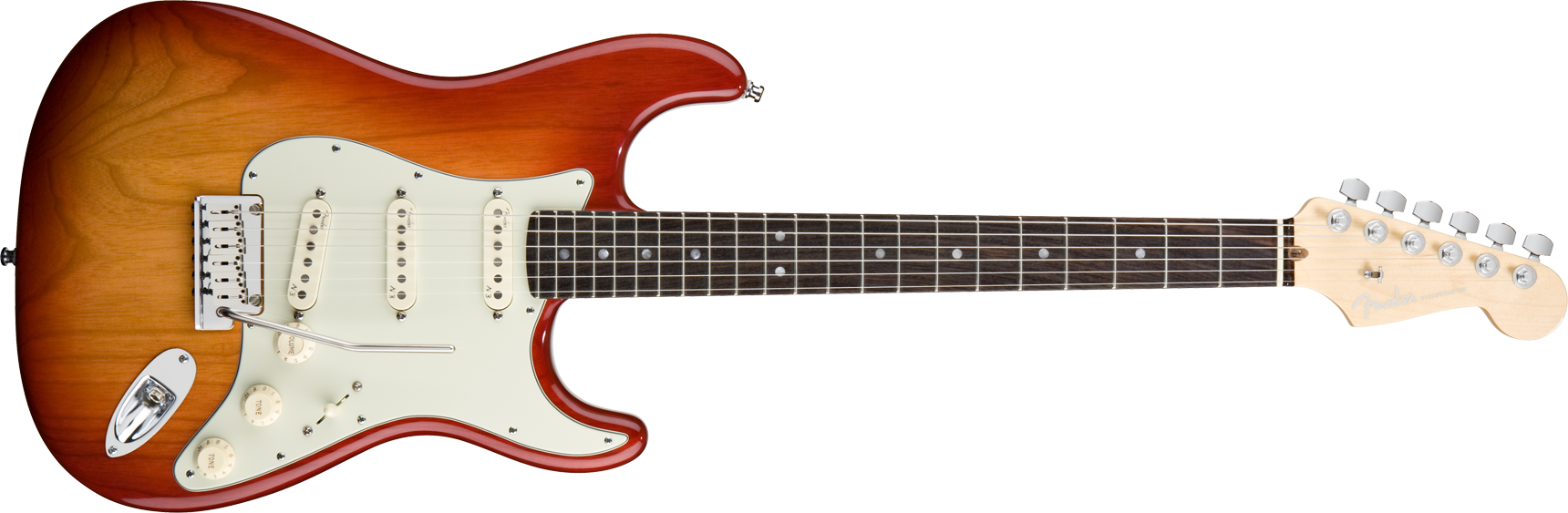

American Deluxe Stratocaster Ash

系列

American Deluxe

顏色

Aged Cherry Sunburst

琴身

琴身材料

Premium Ash

琴身漆面

Urethane

琴身輪廓

Stratocaster

琴頸

琴頸材料

Maple

琴頸漆面

Satin Urethane

琴頸輪廓

Modern "C"

有效弦長

25.5" (648 mm)

指板

Rosewood

指板半徑

9.5"-14" Compound Radius (241 mm-355.6 mm)

品數

22

品絲規格

Medium Jumbo

弦枕

Synthetic Bone

弦枕寬度

1.685" (42.8 mm)

品記

Pearl Dot

調節桿螺母

1/8" American Series

琴頭

琴頸金屬板

4-Bolt with Micro-Tilt

電路系統

琴橋拾音器

Noiseless N3 Single-Coil Strat

中部拾音器

Noiseless N3 Single-Coil Strat

琴頸拾音器

Noiseless N3 Single-Coil Strat

控制系統

Master Volume (with S-1 switch), Tone 1 (Neck Pickup), Tone 2 (Middle and Bridge Pickups; No-Load Tone control)

拾音器切換開關

5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

拾音器配置

SSS

特殊電路系統

S-1 Switch

硬件

琴橋

2-Point Deluxe Synchronized Tremolo with Pop-in Arm

硬件表面

Chrome

搖把把手

Pop-In Deluxe Tremolo Arm

弦鈕

Deluxe Staggered Cast/Sealed Locking

護板

控制旋鈕

Aged White Plastic

檔位帽

Aged White

其它

琴弦

Fender USA Bullets 3250L, NPS, (.009-.042 Gauges)

特點

Compound Radius Fingerboard, New Noiseless N3 Strat Pickups, Reconfigured S-1 Switching, Locking Tuning Machines, Contoured Heel

內含配件

Hardshell Case, Cable, Strap, Straplocks
